Configuration app guide

Step 1: Download and install your platform's configuration app

Go to the app download page and download the installer for the relevant operating system.

Step 2: Add recording periods to the configuration

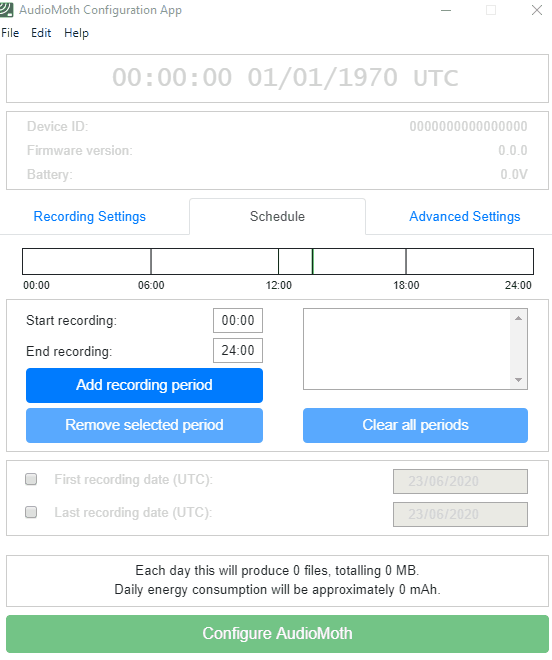

Enter up to 4 periods in which the device will record and then sleep repeatedly until the period is over.

Step 3: Customise recordings

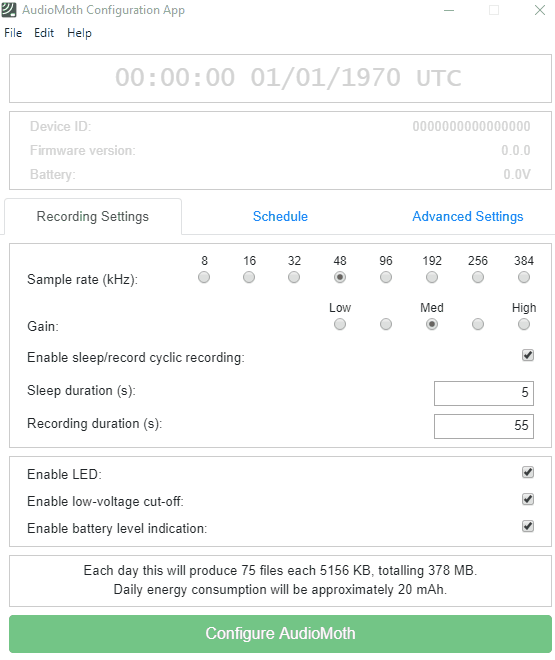

Set the sample rate, gain and length of the recordings you wish to collect. The app will then calculate the energy and storage consumption of your configuration.

Step 4: Enable band, low or high-pass filtering

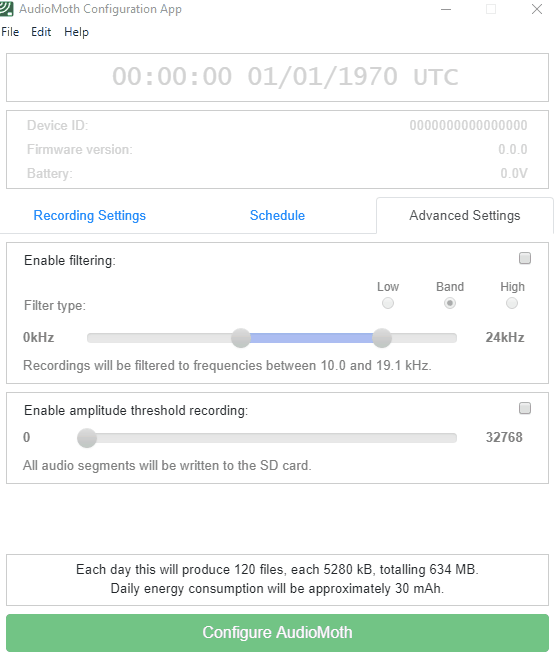

Firmware currently supports three frequency filters: low-pass, band-pass and high-pass. The band-pass filter will let you set the upper and lower frequencies for recordings produced by your device. If you set the slider to 10 kHz and 19.1 kHz, recordings will only include audio data between these two frequencies, discarding the rest.

The low-pass filter works similarly, with the slider selecting a frequency, below which will be recorded. Likewise, if the high-pass filter is selected, audio higher than the slider value will be recorded.

Step 5: Enable threshold recording


Also included in the Filtering tab is amplitude and frequency thresholding. When enabled, your AudioMoth is able to produce much smaller files which contain just the audio above the chosen amplitude or frequency threshold. The gaps between these periods are removed to minimise the space each files takes up, however it is possible to regain these gaps and see when the sounds actually occurred within the recording.

When using the frequency trigger type, instead of low, high, or band-pass filters, you can set the size and position of the frequency band which will be checked for triggers.

To help configure these settings visit the AudioMoth Filter Playground in the AudioMoth Labs section of the website.

Step 6: Advanced settings


The final tab lists all advanced settings.

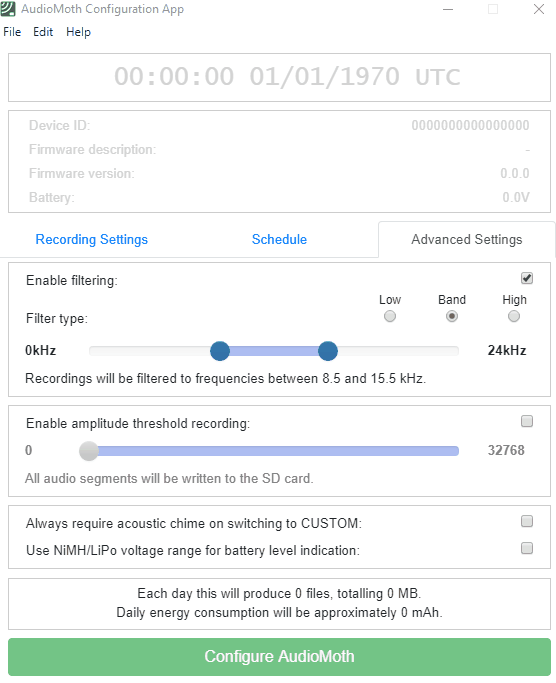

"Always require acoustic chime on switching to CUSTOM" is whether or not to require an acoustic chime before following the recording schedule in CUSTOM mode. If this is checked, then when switched to CUSTOM, even if the time has been set, the AudioMoth will wait for an acoustic chime before commencing the configured schedule.

"Use daily folder for generated WAV files" is whether or not to store recordings in a separate folder each day.


"Use NiMH/LiPo voltage range for battery level indication" is whether to use the voltage range of NiMH/LiPo batteries in order to calculate the current battery level. This battery level is displayed when a device is switched to CUSTOM, before connection over USB has been established.

By default, a 48 Hz DC blocking filter is added to all recordings to clean up the audio slightly. To improve response to very low frequency sounds, such as infrasonic elephant calls, this filter can be disabled by checking "Disable 48Hz DC blocking filter".

For sample rates less than or equal to 48 kHz, checking "Enable energy saver mode" will reduce energy consumption at the expense of a slight reduction in recording quality. This is done by halving the internal oversampling rate which leads to a slight increase in the noise floor of the recordings. The energy reduction will be reflected in the lifespan estimation display.

Checking "Enable low gain range" will reduce the scale covered by the gain selection on the Recording tab, increasing your device's dynamic range and reducing the chance of clipping when recording in noisy environments.


This tab also includes settings which require additional hardware on top of the AudioMoth device itself. The first such setting is "Enable magnetic switch for delayed start", which requires the AudioMoth GPS Board. When checked, your AudioMoth will remain in sleep mode and flash the green LED for 10 ms every 4 seconds when set to CUSTOM until the magnetic switch on the AudioMoth GPS Board has been switched. Once this has happened, normal operation will begin.

The second setting which requires the addition of the AudioMoth GPS Board is "Enable GPS for time setting". Normally, clock drift on the AudioMoth results in the recording time drifting by up to 2 seconds a day. This can be avoided by using a GPS to set the clock at regular intervals. With this setting enabled and the GPS board attached, your device will update the on-board clock before each scheduled recording period. While attempting to get a GPS fix, the green LED will remain lit while the red LED will flash rapidly.

Step 7: Expand amplitude threshold recordings


To expand recordings produced by amplitude thresholding, open the expansion window through the File menu. From here you can put a limit on the size of the expanded recordings. If the expansion produces a file larger than this limit, it will be split into a new file. For example, if you record for 5 hours with amplitude threshold recording enabled, expanding this file with no limit will produce a 5 hour long WAV file.

Once a limit has been set or removed, select the recordings to expand. These are easily identified by a 'T' at the end of the recording name. Select either a folder which contains recordings, or the amplitude threshold recordings directly. Click Expand Recordings and the app will expand each relevant file and place the expanded files in the same directory as the original (keeping the original, unexpanded file).

Step 8: Connect AudioMoth device


Set the switch on the side of your AudioMoth device to USB/OFF and attach it to your computer via USB.

Ensure the device has batteries inserted or the time set along with the configuration will be lost when the device is disconnected and it loses power.

Step 9: Verify connection


Without a successful connection to an AudioMoth device, the configuration app will display a greyed out time, ID and battery level.


When you have successfully connected to your AudioMoth, the device information will no longer be greyed out and the clock should tick upwards from 01/01/1970.

Each AudioMoth possesses an inbuilt clock, used to record at scheduled times and to name recording files. As the clock cannot advance when the device is without battery power, a start time must be given.

Configuring your device will set the start time to your machine's current time in UTC.

Make sure the clock is set before each deployment. Either using this application or one of the chime-based smartphone apps.



Without the clock set, an AudioMoth in CUSTOM mode will not make any recordings.

Step 10: Apply configuration to device​


Once device is connected, the clock display should begin to update. Click "Configure AudioMoth" to apply configuration. From firmware version 1.5.0 onwards, AudioMoth will retain these configuration settings even when power is lost. If the batteries are removed, ensure you set the clock before deploying as it is lost when power is lost.

Updated clock times are presented in UTC to remain consistent across timezones.

Configurations can also be saved to distribute or for later use. Save or load a configuration from the File menu.
