Forum Posts

cristian.pinto
Mar 17, 2022
In Enclosures
Hi, I need to change the acoustic vents of a set of Official IPX7 Waterproof case membranes. I have some questions about suppliers and which are the right dimensions to buy. Thanks in advance.
0
3
72
cristian.pinto
Jul 09, 2021
In Device Purchase

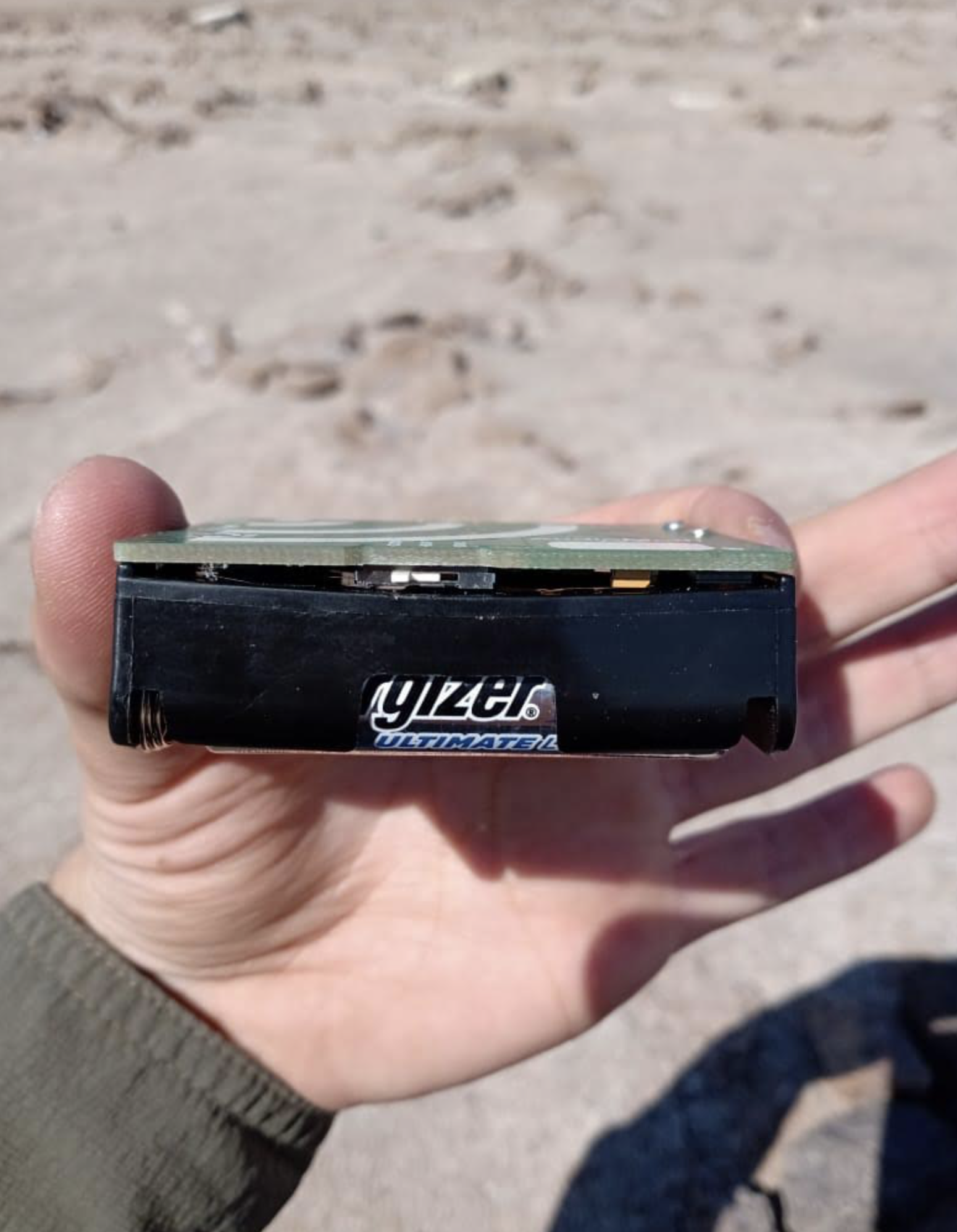

Hello everyone, Somebody has experienced this situation in hot environments? How can it avoided? Does exist a battery holder on demand to replace? Does exist with a better material? As a reference, the audiomoth is into an official audiomoth's enclosure and installed in Atacama Desert (Chile). I'm really afraid on what I'm going to find in the next maintenance cycle in this unit. :*)
Curved battery holder by hot temperatures content media
0
0
47
cristian.pinto
Jun 06, 2021
In Device Support

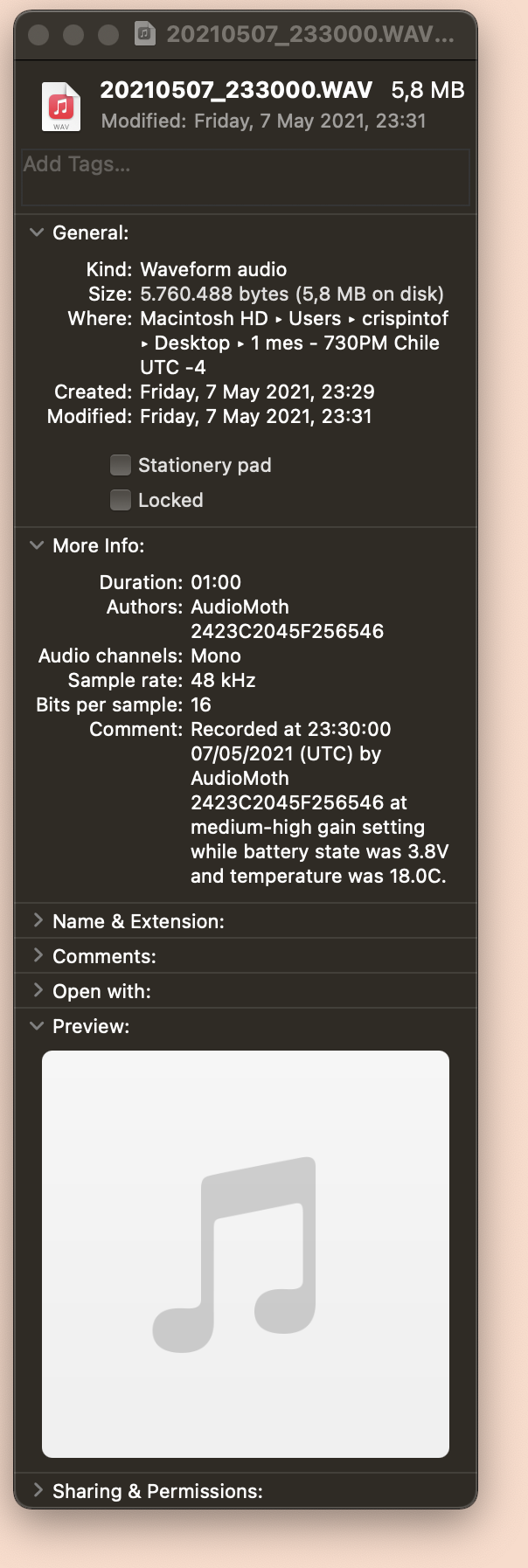

Hi Audiomoth Fans, I'm searching how to extract the temperature data from any audiomoth recording. I tried using seewave & tuneR from R environment. Does any way to extract this data?
How to extract temperature data from any Audiomoth's file? content media
0
5
215
cristian.pinto
May 04, 2021
In Configuration Support
I have a question about Audiomoth App requirements. I have installed a set of audio moth in the field and I'm planning the offload tasks likes change storage card and the batteries. I set the units with the next configuration and I set off the Acoustic Configuration check box. Below is the raw config file to explain this: { "timePeriods": [{"startMins":30,"endMins":635},{"startMins":1410,"endMins":1415}], "ledEnabled": true, "lowVoltageCutoffEnabled": true, "batteryLevelCheckEnabled": true, "sampleRate": 48000, "gain": 3, "recordDuration": 60, "sleepDuration": 3540, "localTime": false, "dutyEnabled": true, "passFiltersEnabled": false, "filterType": "band", "lowerFilter": 6000, "higherFilter": 18000, "amplitudeThresholdingEnabled": false, "amplitudeThreshold": 0, "requireAcousticConfig": false, "displayVoltageRange": true } As I reviewed in the Audiomoth Chime App article, after batteries has been changed, the audiomoth will lost the time clock, so I must set it again using the Audiomoth APP, so I must set the unit in DEFAULT mode and play the chime. Shall it a successful process with "requiereAcousticConfig:false" in the config file?
0
4
107
cristian.pinto
Jun 16, 2019
In Device Support
Hi All, I tried to flash my AudioMoth from 1.2.0 to 1.2.1 and lamentably I didn't finish successfully. I appreciate in advance the solidarity of the Audiomoth's Community. To summarize: 1) I downloaded the last firmware to flash from: https://github.com/OpenAcousticDevices/AudioMoth-Configuration-App/releases 2) I downloaded the flash tool for Mac Users from: https://www.openacousticdevices.info/flashing 3) I executed the step by step from: https://www.openacousticdevices.info/flashing 4) During the step 7). Step 7: Flash AudioMoth device, the bash print the error "ERROR: Timed out waiting for send confirmation from AudioMoth", that seems that the Audiomoth is not reachable: I reviewed that the AudioMoth is in "custom" switch on, without batteries and without micro SD Card, so the pre-requirements are ok. The troubleshooting process that I executed was: 1. Repeat the process . The results was the same error. 2. Execute the process as a root. The results was the same error. 3. Change the privilegies in flash executable and also in the device: chmod 777 dev/tty.usbmodem14201 chmod 777 flash A new error appeared ERROR: Did not receive response from AudioMoth after sending chunk Below is the terminal print screen: sh-3.2# cd Desktop/flash/ sh-3.2# ls AudioMoth1.2.1.bin flash sh-3.2# ./flash /dev/tty.usbmodem14201 sh-3.2# ./flash -i /dev/tty.usbmodem14201 Serial Number: 248C7D075B2BEB30 sh-3.2# ./flash -u /dev/tty.usbmodem14201 AudioMoth1.2.1.bin ERROR: Timed out waiting for send confirmation from AudioMoth sh-3.2# ./flash -u /dev/tty.usbmodem14201 ./AudioMoth1.2.1.bin ERROR: Timed out waiting for send confirmation from AudioMoth Best regards from Chile, Neotropic. Cristián Pinto // cristian.pinto@ymail.com
0
9
238
cristian.pinto
